LXS-13D
LXS-15F1~50F1

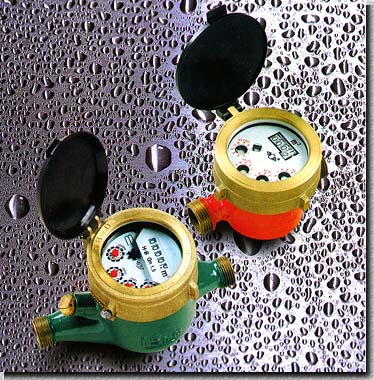

LIQUID SEALED VANE WHEEL WATER METER
APPLICATION:
Measuring the volume of cold portable water passing through the pipeline

FEATURES:
Liquid sealed register, Long clear reading, etc.

WORKING CONDITION:
Water temperature：≤40℃
Water pressure：≤1MPa
MAXIMUM PERMISSIBLE ERROR
A) in the lower zone from qmin
     inclusive up to but excluding qtis ±5%
B) in the upper zone from qt
     inclusive up to and including qs is ±2%		 NOTE:
Technical data conform to international
Standard ISO4064
MAIN TECHNICAL DATA
Type Size
mm		 Class qs
Max.
Flow		 qp
Nominal
Flow		 qt
Transitional
Flow		 qmin
Min.
Flow		 Min.
Reading
Max.
Reading
m3/h l/h m3
LXS-13D 13 A 3 1.5 0.15 60 0.0001 9999
B 0.12 30
LXS-15F1 15 A 3 1.5 0.15 60 0.0001 99999
B 0.12 30
LXS-20F1 20 A 5 2.5 0.25 100 0.0001 99999
B 0.20 50
LXS-25F1 25 A 7 3.5 0.35 140 0.0001 99999
B 0.28 70
LXS-32F1 32 A 12 6.0 0.60 240 0.0001 99999
B 0.40 120
LXS-40F1 40 A 20 10 1.00 400 0.001 999999
B 0.80 200
LXS-50F1 50 A 30 15 1.50 600 0.001 999999
B 1.20 300
DIMENSIONS AND WEIGHT
Type Size Length Width Height Connecting Thread
D		 Weight
kg
mm
LXS-13D 13 100 90.5 92 G 3/4B 0.9
LXS-15F1 15 145/165 90 115.5 G 3/4B 1.4/1.5
LXS-20F1 20 190 90 117 G1B 1.7
LXS-25F1 25 260/225 96 126 G1 1/4B 2.6/2.4
LXS-32F1 32 260/230 96 126 G1 1/2B 2.8/2.7
LXS-40F1 40 300/245 122 149 G2B 5.1/4.8
LXS-50F1 50 300/280 125 172 G2 1/2B 8.5/8.2
GB4216   4-84  D= 165  D1= 125 11.5/11

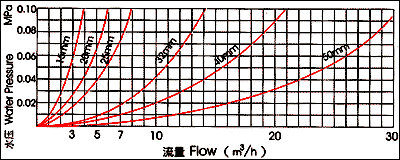

Pressure Loss Curve

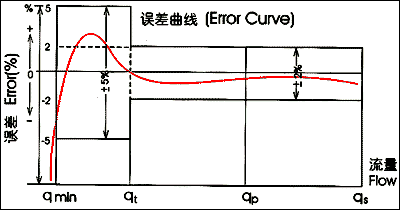

Flow Error Curve
