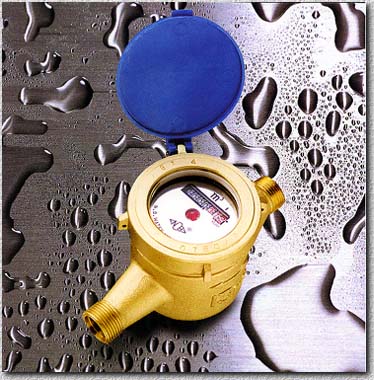

LXSC-13~50
MULTI-JET DRY TYPE VANE
WHEEL WATER METER
APPLICATION:
Measuring the volume of cold portabel water passing through the pipeline

FEATURES:
Dry type,register sealed in container of anti-corrosion metal,magnetic drive,easy and long term clear reading,etc.

WORKING CONDITION:
Water temperature：≤40℃
Water pressure：≤1MPa
A) in the lower zone from Qmin
     inclusive up to but excluding Qt is ±5%
B) in the upper zone from qt
     inclusive up to and including qs is ±2%

NOTE:
Technical data conform to international
Standard ISO 4064
MAIN TECHNICAL DATA
Type Size
mm		 Class qs
Max.
Flow		 qp
Nominal
Flow		 qt
Transitional
Flow		 qmin
Min.
Flow		 Min.
Reading
Max.
Reading
m3/h l/h m3
LXSC-13 13 A 3 1.5 150 60 0.001 9999
B 120 30
LXSC-20 20 A 5 2.5 250 100 0.001 9999
B 200 50
LXSC-25 25 A 7 3.5 350 140 0.001 9999
B 280 70
LXSC-32 32 A 12 6 600 240 0.001 9999
B 480 120
LXSC-40 40 A 20 10 1000 400 0.01 99999
B 800 200
LXSC-50 50 A 30 15 1500 600 0.01 99999
B 1200 300

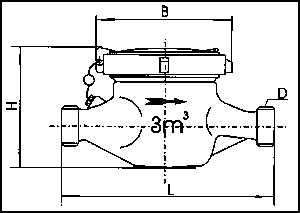

DIMENSIONS AND WEIGHT
Type Size Length Width Height Connecting Thread
D		 Weight
kg
mm
LXSC-13 13 165 99.5 100 G 3/4B 1.4
LXSC-20 20 190 99.5 103 G1B 1.5
LXSC-25 25 225 99.5 112 G1 1/4B 2.0
LXSC-32 32 230 99.5 112 G1 1/2B 2.5
LXSC-40 40 245 125 150 G2B 4.5
LXSC-50 50 300/280 125 150 G2 1/2B 8.5/8.2
GB4216   4-84  D=?165  D1=?125 11.5/11

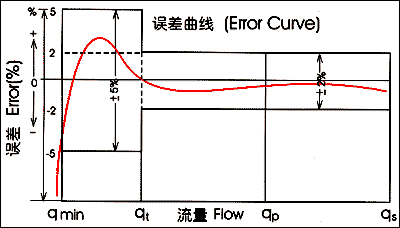

Flow Error Curve

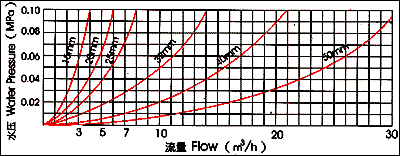

Pressure Loss Curve
