LXSC-13D120D1
LXSC-13D220D2
SINGLE JET DRY TYPE VANE WHEEL WATER METER
APPLICATION:
Measuring the volume of cold portable water passing through the pipeline

FEATURES:
Dry type, small, light, magnetic drive, easy and long term clear reading, etc.

WORKING CONDITION:
Water temperature:≤40
Water pressure:≤1MPa


A)  in the lower zone from qmin
      inclusive up to but excluding qt is ±5%

B)  in the upper zone from qt
      inclusive up to and including qs is ±2%

MAIN TECHNICAL DATA
Type Size
mm
Class
qs
Max.
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min.
Flow
Min.
Reading

Max.
Reading
m3/h l/h m3
LXSC-13D2 15 A 3 1.5 150 60 0.001 9999
B 120 30
LXSC-20D2 20 A 5 2.5 250 100 0.001 9999
B 200 50
LXSC-13D1 13 A 3 1.5 150 60 0.0001 99999
B 120 30
LXSC-20D1 20 A 5 2.5 250 100 0.0001 99999
B 200 50

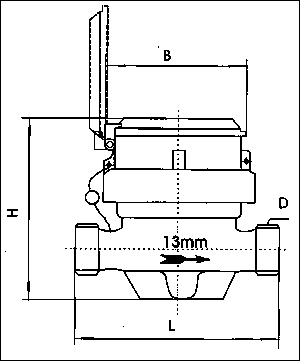

DIMENSIONS AND WEIGHT
Type Size Length Width Height Connecting Thread
D
Weight
kg
mm
LXSC-13D2 13 110 85 85 G 3/4B 1.3
LXSC-20D2 20 130 85 85 G 1B 1.5
LXSC-13D1 13 110 85 85 G 3/4B 1.3
LXSC-20D1 20 130 85 85 G 1B 1.5

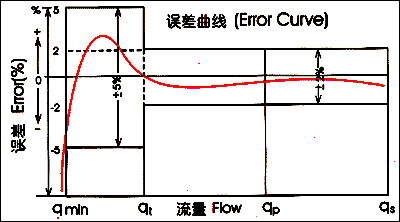

Flow Error Curve

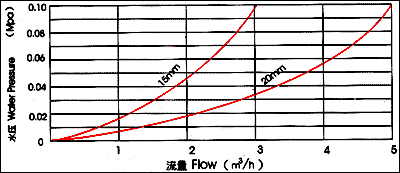

Pressure Loss Curve
